Elephant Framework Delivered in Phishing Attacks Against Ukrainian Orgs

Elephant Framework Delivered in Phishing Attacks Against Ukrainian Organizations

Written by and

    Share article
    FacebookTwitterLinkedInRedditCopy Link

    Top Blogs

    A recently developed malware framework called Elephant is being delivered in targeted spear phishing campaigns using spoofed Ukrainian governmental email addresses. The four malware components delivered are used for stealing credentials, documents, and to provide remote access to the infected machine.

    Two of these components were first reported on by the Computer Emergency Response Team for Ukraine (CERT-UA) in March 2022. They named the two components GraphSteel and GrimPlant. When investigating these events, we have identified that Elephant has also been delivered via phishing emails from spoofed Ukrainian email addresses. Elephant is a malware framework written in Go. The activity has been attributed to UAC-0056 (TA471, SaintBear, UNC2589) by CERT-UA.

    Background

    On March 12, the CERT-UA published an alert on a threat about phishing emails sent on behalf of state bodies of Ukraine that urged the recievers to update the system by using a link provided in the email. Once the user opens the link two files are downloaded, one is Cobalt Strike Beacon the other is a dropper that will download and execute two additional files. These additional files are base64 encoded, the files saved as: “microsoft-cortana.exe” (classified as GraphSteel) and “oracle-java.exe” (GrimPlant backdoor). The attack used Discord as a hosting server for the additional payload that was downloaded.

    On March 15, SentinelOne found two more samples of the GraphSteel and GrimPlant malware families. These samples written in Go were dropped by an executable that was disguised as a translation application. The new samples are similar to those published by the CERT-UA, both in the naming and the functionality.

    On March 28, CERT-UA published another alert about phishing emails with an attached “xls” file. The subject of the email and the file name are both “Wage arrear”. The attached file had macros that, once executed, created a file called Base-Update.exe – a malware that downloads and executes two other files classified as GraphSteel and GrimPlant by the CERT.

    Phishing Email

    • The subject of the email: Заборгованість по зарплаті (arrears in wages).
    • The email was sent from zam@mdfi.gov.ua to ilenko@gng.com.ua.
    • The sender domain “mdfi.gov.ua” belongs to the Mykolayiv Regional Phytosanitary Laboratory.
    • The receiver is the Head of Department of Technical Supply in OKKO Group, one of the largest filling stations in Ukraine, this person is in charge of the gas stations chain.
    • Based on the headers of the email: the email was sent from 87.249.139.161 (hosting web server located in Turkey).
    Return-Path: <zam@mdfi.gov.ua>
    Received: from hosting30.ukrnames.com (hosting30.ukrnames.com [217.182.197.11])
       by mx-fm0.gng.com.ua with ESMTP id 22RJjl16017368-22RJjl18017368
       (version=TLSv1.2 cipher=ECDHE-RSA-AES256-GCM-SHA384 bits=256 verify=NO)
       for <ilenko@gng.com.ua>; Sun, 27 Mar 2022 22:45:47 +0300
    Received: from [87.249.139.161] (port=15731 helo=WIN3ISR1T95E6Qwwwtendawificom)
       by hosting30.ukrnames.com with esmtpsa  (TLS1.2) tls TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
       (Exim 4.95)
       (envelope-from <zam@mdfi.gov.ua>)
       id 1nYYot-00AQaf-Gj
       for ilenko@gng.com.ua;
       Sun, 27 Mar 2022 22:45:47 +0300
    MIME-Version: 1.0
    From: "zam@mdfi.gov.ua" <zam@mdfi.gov.ua>
    Reply-To: zam@mdfi.gov.ua
    To: ilenko@gng.com.ua
    ...
    X-Mailer: Smart_Send_4_4_2
    Date: Sun, 27 Mar 2022 12:44:30 -0700
    Message-ID: <127804766552081718123841@WIN-3ISR1T95E6Q>
    X-AntiAbuse: This header was added to track abuse, please include it with any abuse report
    X-AntiAbuse: Primary Hostname - hosting30.ukrnames.com
    X-AntiAbuse: Original Domain - gng.com.ua
    X-AntiAbuse: Originator/Caller UID/GID - [47 12] / [47 12]
    X-AntiAbuse: Sender Address Domain - mdfi.gov.ua
    X-Get-Message-Sender-Via: hosting30.ukrnames.com: authenticated_id: zam@mdfi.gov.ua
    X-Authenticated-Sender: hosting30.ukrnames.com: zam@mdfi.gov.ua
    X-Source:
    X-Source-Args:
    X-Source-Dir:
    X-FE-Attachment-Name: =?UTF-8?B?x+Dh7vDj7uLg7bPx8vwg7+4g5+Dw7+vg8rMueGxz?=
    X-FEAS-SBL: 87.249.139.161 score 1
    X-FE-Policy-ID: 2:1:4:gng.com.ua
    X-FE-Orig-Env-Rcpt: ilenko@gng.com.ua
    X-FE-Orig-Env-From: zam@mdfi.gov.ua
    X-FEAS-Client-IP: 217.182.197.11

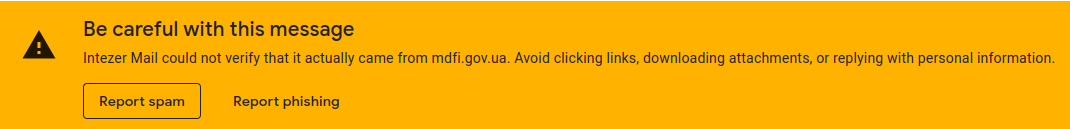

    While reviewing the email’s transport path, we noticed that the domain “mdfi.gov.ua” did not have a configured SPF record to prevent email spoofing. An SPF record is used to restrict which IP addresses are allowed to send emails for a specific domain. If this record is not set, any IP address is technically allowed to send emails using that domain name. Some email providers do warn when they receive an email from an address that doesn’t have an SPF record. The screenshot below shows the warning message displayed in GMail when reading such email.

    Our theory is that the threat actor exploited this vulnerability to send spoofed phishing emails to their targets. We reported the issue to CERT-UA.

    We followed the sender IP address and found three other emails: two emails submitted on March 29 from Ukraine targeting ICTV, a Ukrainian TV channel and the third email was submitted in February from Romania. The emails that target UA have the same subject and use the same attached xls file that delivers the first malicious payload.

    The Elephant Framework

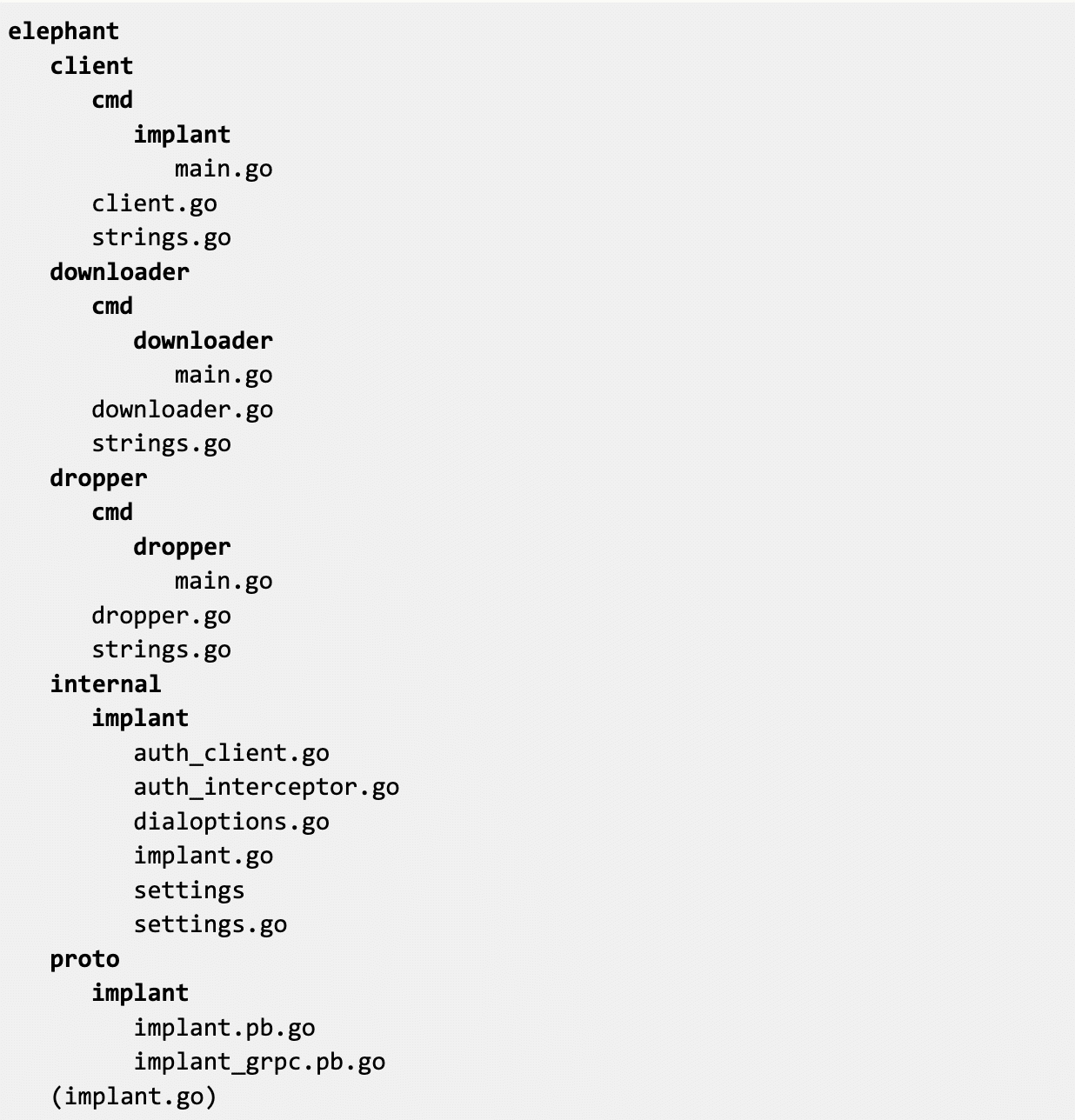

    The malware that is dropped by the phishing lure is the dropper component of what we call the “Elephant Framework.” The framework consists of four components that work in unison. The code snippet below shows a reconstruction of the source code tree, bold indicating folders, showing how the different components have been organized. The location of the implant’s entrypoint is unknown and has been guessed to be in the root folder. As there are also server components to the framework, we hypothesize that there are more folders for the two servers used by the framework.

    elephant malware framework

    Dropper Component

    While called the dropper in the framework, this component does not have an embedded payload. Instead it is technically a downloader that fetches the next stage called the “downloader.” The next stage is downloaded from the URL “hxxp://194.31.98.124:443/i” and saved to the user’s home directory (%HOME%/.java-sdk/java-sdk.exe). The next stage is executed with the command line flag “-a 0CyCcrhI/6B5wKE8XLOd+w==”, base64 and AES encrypted information about the C2 server.

    Downloader Component

    The “downloader” acts as an orchestrator for the other components. In addition to downloading the “client” and the “implant” components, it also sets up persistence and can perform updates. Like all the other components, before any malicious activity is taken it performs some evasion techniques. The difference between this component and the others is that this one is using code from the ColdFire project on GitHub. The screenshot below shows the malware using the “Wait” function to sleep for 10 seconds before allocating 200 mb of garbage data.

    elephant downloader

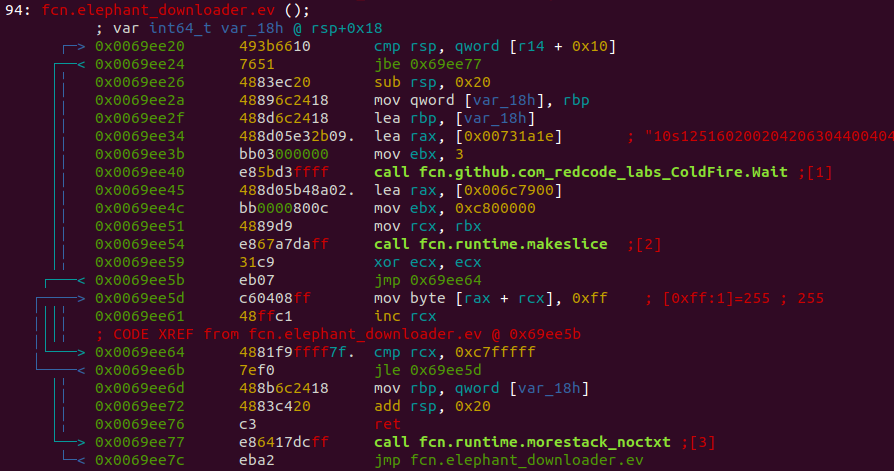

    Persistence is established by adding a new key entry with the name “Java-3DK” to the registry key “Software\Microsoft\Windows\CurrentVersion\Run”. After this, the malware checks if a new binary exists by comparing its MD5 hash with a hash from the server. If no update is needed, it downloads the other two components.

    The downloader has some 3rd party libraries, whose metadata are listed in the binary, that are not used. All the 3rd party libraries are listed in the code snippet below. In the list for example “port-scanner”, “gopacket”, and “gateway” packages are not being used. These are all libraries to facilitate lateral movement. It is not clear if these are left-overs from an older version of the malware or hints of future functionality.

    github.com/anvie/port-scanner  	v0.0.0-20180225151059-8159197d3770
    github.com/dustin/go-humanize  	v1.0.0
    github.com/fatih/color         	v1.10.0
    github.com/google/gopacket     	v1.1.19
    github.com/google/gopacket/layers  v1.1.19
    github.com/google/gopacket/pcap	v1.1.19
    github.com/jackpal/gateway     	v1.0.7
    github.com/jcmturner/aescts    	v2.0.0+incompatible
    github.com/mattn/go-colorable  	v0.1.8
    github.com/mattn/go-isatty     	v0.0.12
    github.com/minio/minio/pkg/disk	v0.0.0-20210213070509-a94a9c37faf5
    github.com/mitchellh/go-ps     	v1.0.0
    github.com/redcode-labs/ColdFire   v0.0.0-20210118141151-d4d62410b029
    github.com/savaki/jq           	v0.0.0-20161209013833-0e6baecebbf8
    github.com/savaki/jq/scanner   	v0.0.0-20161209013833-0e6baecebbf8
    golang.org/x/sys/windows       	v0.0.0-20210119212857-b64e53b001e4
    golang.org/x/sys/windows/registry  v0.0.0-20210119212857-b64e53b001e4

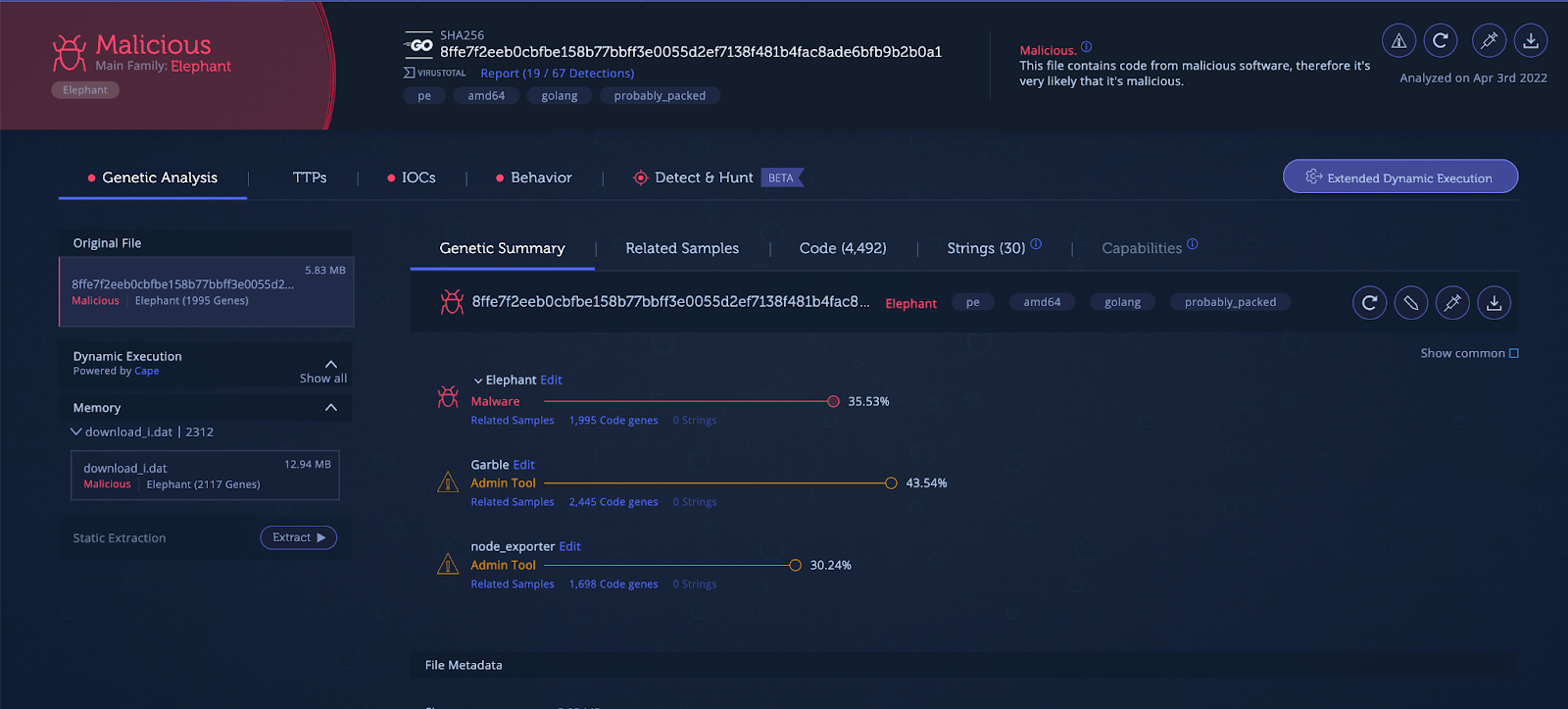

    Elephant downloader in Intezer Analyze
    Analysis of the Elephant downloader

    Implant Component (GrimPlant)

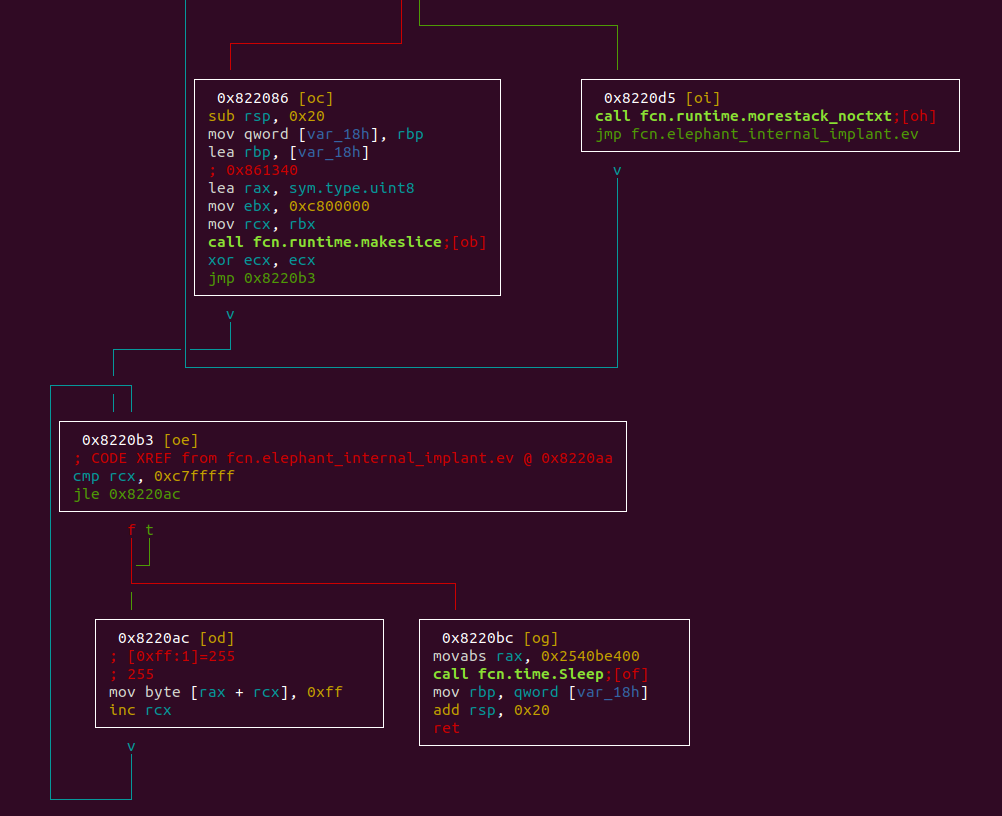

    GrimPlant is a backdoor that allows the operator to execute arbitrary PowerShell scripts on the infected machine. The backdoor has a relatively small set of functionality, for example it doesn’t have any persistence functionality on its own. When the malware first is executed, it allocates 200 mb and sleeps for 10 seconds, the function shown in the screenshot below. This is an anti-emulation technique that has been found in other malware written in Go.

    The Command and Control (C2) address is not included in the binary. Instead it is passed in to the malware via the command line flag “-addr”. The address is not provided as a plain string. Instead it has been encrypted with AES in Cipher-Block Chaining (CBC) mode. The malware decrypts the string with the embedded key (f1d21960d8eb2fddf2538d29a5fd50b5f64a3f9bf06f2a3c4c950438c9a7f78e) and a null IV. The port used by the C2 server is hardcoded to port 80.

    GrimPlant communicates with the C2 server over gRPC. The communication is encrypted with TLS. The malware has an embedded root certificate that it uses to verify that it talks to a trusted server. The code snippet shows parts of the root certificate information. The certificate used by the C2 server has been signed by this root certificate which allows the threat actor to rotate the certificate without redeploying a new malware.

    Version: 3 (0x2)
        	Serial Number:
            	6d:56:93:aa:f3:9d:b1:f7:15:4e:39:64:77:9c:7e:d0:d4:cf:f6:3e
        	Signature Algorithm: sha256WithRSAEncryption
        	Issuer: C = FR, ST = Occitanie, L = Toulouse, O = O, OU = E, CN = *.a.com, emailAddress = a@mail.com
        	Validity
            	Not Before: Mar 20 15:21:06 2022 GMT
            	Not After : Mar 20 15:21:06 2023 GMT
        	Subject: C = FR, ST = Occitanie, L = Toulouse, O = O, OU = E, CN = *.a.com, emailAddress = a@mail.com
    SHA1 Fingerprint=DC:A9:5B:DC:F0:53:55:73:7A:A6:79:85:43:F6:3E:7C:23:07:36:33

    There are only a handful of gRPC “methods” supported by the malware. A reconstructed protobuf specification is shown in the code snippet below. To identify which instance of the malware is sending the request to the C2 server, the malware uses its machine ID as an unique identifier in the messages. When the malware first connects to the C2 server, it authenticates itself with the password “sdrunlygvhwbcaeiuklgunvre”.

    After a successful authentication, it sends a heartbeat message every 10 seconds. This message includes information about the infected machine: public IP address, hostname, username, etc. In addition to the heartbeat message, the malware starts the “command” loop that checks for new commands to execute every 3 seconds. If a command is received it executes it by spawning a PowerShell instance by executing “%windir%\SysWOW64\WindowsPowerShell\v1.0\powershell.exe” and returns the result to the C2 server.

    service Implant {
    	rpc FetchCommand(FetchCmdRequest) returns FetchCmdResponse {}
    	rpc Heartbeat(stream HeartbeatRequest) returns (stream Empty) {}
    	rpc Login(ImplantLoginRequest) returns ImplantLoginResponse {}
    	rpc SendCmdOutput(SendCmdRequest) returns SendCmdResponse {}
    }

    message FetchCmdRequest {
    	string id = 1;
    }

    message FetchCmdResponse {
    	string adminId = 1;
    	bytes cmdText = 2;
    }

    message HeartbeatRequest {
    	string id = 1;
    	bytes sysInfo = 2;
    }

    message ImplantLoginRequest {
    	string id = 1;
    	bytes sysInfo = 2;
    	string password = 3;
    }

    message ImplantLoginResponse {
    	string token = 1;
    }

    message SendCmdRequest {
    	string adminId = 1;
    	bytes output = 2;
    	bytes error = 3;
    }

    message SendCmdResponse {}

    message Empty {}

    Client Component (GraphSteel)

    The “client” component is a credential and file stealer. It communicates with the C2 server over WebSockets to a GraphQL endpoint. All the messages are encrypted with AES. The key is received from the C2 server. The malware author has written their own RSA implementation for the key exchange that is used to receive the shared secret. All messages prior to the key exchange, including the key exchange itself, are encrypted with AES using a hardcoded key.

    The credentials on the machine are stolen using code lifted from goLazagne. In addition to stealing credentials, the malware will look in the user’s “Documents”, “Downloads”, “Pictures”, and “Desktop” folder for files with the file-extensions listed in the snippet below.

    .key, .crt, .json, .csv, .7z, .rar, .zip, .ssh, .ovpn, .pptx, .xlsx, .docx, .ppt, .xls,
    .doc, .txt

    If it finds a file with a matching file extension, it generates the MD5 hash for the file and checks with the C2 server if the file has already been uploaded. If it hasn’t, the file is uploaded to the C2 server.

    Infrastructure

    Using the embedded CA certificate in the malware, we uncovered older service certificates and IP addresses. The oldest certificate we discovered had a validity date of “not before” December 9th, 2021. The IP address of the server where this certificate was served from is owned by the Russian hosting provider Zservers and still returned Elephant components as of April 2022. The components retrieved from the server are very similar to the samples used at the end of March. The other hosting providers used by the threat actor are PQ Hosting and Serverion.

    The threat actor has chosen to sprinkle some French connections within their infrastructure. The certificates use French location information and the domain name forkscenter[.]fr. We don’t know if the decision to name it Elephant is a nod to Babar, an espionage software attributed to a French intelligence agency, or intended as a “false flag.”

    Conclusion

    UAC-0056 (TA471, SaintBear, UNC2589) started using a new malware framework called Elephant back in December 2021. The malware has been delivered in targeted spear phishing campaigns using spoofed Ukrainian governmental email addresses. The malware consists of at least four different components that are used for stealing credentials, documents, and to provide remote access to the infected machine. The threat actor has opted to use multiple protocols for C2 communication, gRPC and GraphQL over websockets. This is an interesting choice as it complicates the development of the framework with more code to maintain.

    Indicators of Compromise

    194.31.98.124 - C2 address used by the malware

    87.249.139.161 - IP address that was used for sending the emails

    IP addresses used in previous campaigns.
    91.242.229.35
    45.84.0.116
    80.66.76.187

    Original Email	3c2022fea48b52326f9eec4c1c84f10b
    xls 			da305627acf63792acb02afaf83d94d1
    Base-update.exe	06124da5b4d6ef31dbfd7a6094fc52a6
    Java-sdk		36ff9ec87c458d6d76b2afbd5120dfae
    oracle-java		4a5de4784a6005aa8a19fb0889f1947a
    Microsoft-cortana	6b413beb61e46241481f556bb5cdb69c

    Samples from oldest server found
    8e0eb1742b47745ff73389673996e964
    cbc0e802b7134e1d02df1f2eb1b1d1e2
    628f41776ae3b2e8343eeb9cdcd019f2

    More Emails linked to the same sender IP
    C7051e88ae43c1bd4b869cf18280ec5e
    40b42005e9cfc5ea2a7cfc1ced975cbb
    Fbe3cb4dfce740c3728c459b853e4249 (email submitted and target Romania)

    Paths
    %HOME%\AppData\Local\Temp\Base-Update.exe
    %HOME%\.java-sdk
